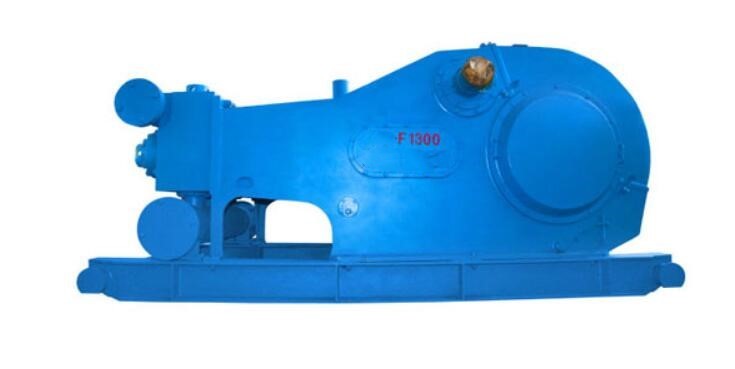

F1300 Mud Pump Well Drilling Compact Structure
F1300 Mud Pump Well Drilling has features of solid and compact structure, small volume, and good and reliable performance. F1300 Mud Pump Well Drilling can meet the drilling requirements such as high pressure and big displacements whether in land drilling or off-shore drilling.
F1300 Mud Pump Well Drilling has a longer stroke and can be operated at a lower stroke, thus improving the water-supplying performance effectively and extending the lifetime of mud pump fluid end parts greatly.
Parameters of F1300 Mud Pump Well Drilling
| Liner Size | in | 7 | 6 3/4 |
6 1/2
|
6 1/4
|
6
|
5 1/2
|
5 |
| Discharge Pressure | Mpa |
19.2
|
20.6
|
22.3
|
24.1
|
26.1
|
31.1
|
34.5
|
| psi |
2785
|
2988
|
3234 |
3495 |
3785
|
4510
|
5000
|
|
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | ||||||
| 130 |
1050
(1408)
|
49.19
(779.6)
|
45.74
(725.0)
|
42.41
(672.2)
|
39.22
(621.6)
|
36.14
(572.8)
|
30.36
(481.2)
|
25.10
(397.8)
|
| 120 |
*970
(1300)
|
45.41
(719.7)
|
41
(649.8)
|
39.15
(620.5)
|
36.20
(573.7)
|
33.36
(528.7)
|
28.03
(444.2)
|
23.17
(367.2)
|
| 110 |
889
(1192)
|
41.63
(659.8)
|
38.07
(603.4)
|
35.89
(568.8)
|
33.18
(525.9)
|
30.58
(484.7)
|
25.69
(407.1)
|
21.24
(336.6)
|
| 100 |
808
(1083)
|
37.84
(599.7)
|
35.18
(557.6)
|
32.63
(517.1)
|
30.17
(478.2)
|
27.8
(440.6)
|
23.36
(370.2)
|
19.31
(306.0)
|
| 90 |
727
(975)
|
34.06
(539.8)
|
31.67
(501.9)
|
29.36
(465.3)
|
27.15
(430.3)
|
25.02
(396.5)
|
21.02
(333.1)
|
13.38
(212.0)
|
| 50 |
404
(541)
|
18.92
(299.8)
|
17.59
(278.8)
|
16.31
(258.5)
|
15.08
(239.0)
|
13.9
(220.3)
|
11.68
(185.1)
|
9.65
(152.9)
|
| 1 |
8.08
(10.8)
|
0.3784
(6.00)
|
0.3518
(5.57)
|
0.3518
(5.57)
|
0.3263
(5.17)
|
0.278
(4.40)
|
0.2336
(3.70)
|
0.1931
(3.06)
|
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | ||||||||
| --The * present the recommendatory SPM and input power when the mud pump runs continuously. | ||||||||
