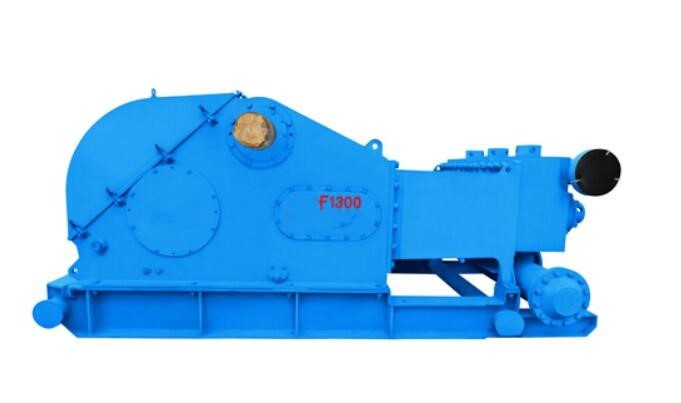

F1300FT 970 KW Oil Mud Pump Split Structure
The frame of the F1300FT Oil Mud Pump with split structure. The maximum weight of a single module of the F1300FT Oil Mud Pump is not more than 7496lb (3400kg). can be transported by aircraft. F1300FT Oil Mud Pump meets the drilling needs of the jungle and other places where the traffic is inconvenient. Pump performance parameters are the same as the F1300 drilling pump.
Parameters of F1300FT Oil Mud Pump
Liner Size | in | 7 | 6 3/4 |
6 1/2
|
6 1/4
|
6
|
5 1/2
|
5 |
Discharge Pressure | Mpa |
19.2
|
20.6
|
22.3
|
24.1
|
26.1
|
31.1
|
34.5
|
psi |
2785
|
2988
|
3234 |
3495 |
3785
|
4510
|
5000
|
|
Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | ||||||
130 |
1050
(1408)
|
49.17
(779.6)
|
45.74
(725.0)
|
42.41
(672.2)
|
39.22
(621.6)
|
36.14
(572.8)
|
30.36
(481.2)
|
25.10
(397.8)
|
120 |
*970
(1300)
|
45.41
(719.7)
|
41
(649.8)
|
39.15
(620.5)
|
36.20
(573.7)
|
33.36
(528.7)
|
28.03
(444.2)
|
23.17
(367.2)
|
110 |
889
(1192)
|
41.63
(659.8)
|
38.07
(603.4)
|
35.89
(568.8)
|
33.18
(525.9)
|
30.58
(484.7)
|
25.69
(407.1)
|
21.24
(336.6)
|
100 |
808
(1083)
|
37.84
(599.7)
|
35.18
(557.6)
|
32.63
(517.1)
|
30.17
(478.2)
|
27.8
(440.6)
|
23.36
(370.2)
|
19.31
(306.0)
|
90 |
727
(975)
|
34.06
(539.8)
|
31.67
(501.9)
|
29.36
(465.3)
|
27.15
(430.3)
|
25.02
(396.5)
|
21.02
(333.1)
|
13.38
(212.0)
|
50 |
404
(541)
|
18.92
(299.8)
|
17.59
(278.8)
|
16.31
(258.5)
|
15.08
(239.0)
|
13.9
(220.3)
|
11.68
(185.1)
|
9.65
(152.9)
|
1 |
8.08
(10.8)
|
0.3784
(6.00)
|
0.3518
(5.57)
|
0.3518
(5.57)
|
0.3263
(5.17)
|
0.278
(4.40)
|
0.2336
(3.70)
|
0.1931
(3.06)
|
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | ||||||||
--The * present the recommendatory SPM and input power when the mud pump runs continuously. |
F1300FT Oil Mud Pump Specification :
Rated input Power: 970 kW (1300 HP)
stroke Per Minute :o SPM
Stroke Length: 304.8 mm (12")
Gear Ratio: 4.206:1
Max.Working Pressure: 34.5 MPa (5000 psi)Valve: API#7
Max.Liner Size: 7"
Suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange,34.5 MPa (5000 psi)Overall Dimension (LxWxH):4493×2493×1951 mm3(14.74×8.18×6.40 ft3)Approx Weight: 23609 kg (52050 lb)
