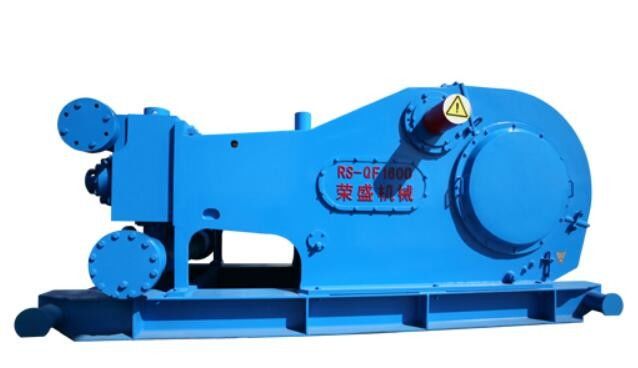

QF1600 Mud Pump For Water Well Drilling Assembled Structure
Specification of Mud Pump For Water Well Drilling :
Rated input Power: 1193 kW (1600 HP)
Stroke Per Minute: 130 SPM
stroke Length: 279.4 mm (11")
Gear Ratio: 3.778:1
Max. Working Pressure: 34.5 MPa (5000 psi)
Valve: API#7
Max.Liner size : 180 mm (7")
Suction Inlet Flange: 254 mm (10") flange
Discharge Outlet Flange: 103 mm (41/16") flange,34.5 MPa (5000 psi)
Overall Dimension (L×W×H):4359×2219×1939 mm3(14.3×7.28×6.36 ft3)
Approx Weight: 18880 kg (41623 lb)
Parameters of Mud Pump For Water Well Drilling
| Liner Size | in | 7 | 6 3/4 |
6 1/2
|
6 1/4
|
6
|
5 1/2
|
| Discharge Pressure | Mpa |
23.7
|
25.5
|
27.5
|
29.8
|
32.3 |
34.5
|
| psi |
3440
|
3700
|
3990 |
4320 |
4685
|
5000
|
|
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | |||||
| 140 |
1285
(1723)
|
48.9
(775.0)
|
45.5
(721.1)
|
42.2
(668.8)
|
39.0
(618.1)
|
35.9
(569.0)
|
30.2
(478.6)
|
| 130 |
*1193
(1600)
|
45.2
(716.4)
|
42.0
(665.7)
|
39.0
(618.1)
|
36.0
(570.6)
|
33.2
(526.2)
|
27.9
(442.2)
|
| 120 |
1101
(1477)
|
41.7
(660.9
|
38.7
(613.4)
|
35.9
(569.0)
|
33.2
(526.2)
|
30.6
(485.0)
|
25.7
(407.3)
|
| 110 |
1009
(1354)
|
38.2
(605.5)
|
35.5
(562.6)
|
32.9
(521.4)
|
30.4
(481.4)
|
28.0
(443.8)
|
23.6
(374.0)
|
| 100 |
918
(1231)
|
34.7
(550.0)
|
32.3
(512.0)
|
29.9
(473.9)
|
27.7
(439.0)
|
25.5
(404.2)
|
21.4
(339.2)
|
| 50 |
459
(615)
|
17.3
(274.2)
|
16.1
(255.2)
|
14.9
(236.1)
|
13.8
(218.7)
|
12.7
(201.3)
|
10.7
(169.6)
|
| 1 |
9.18
(12.3)
|
0.347
(5.50)
|
0.323
(5.12)
|
0.299
(4.74)
|
0.277
(4.39)
|
0.255
(4.04)
|
0.214
(3.39)
|
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | |||||||
| --The * present the recommendatory SPM and input power when the mud pump runs continuously. | |||||||
Structural Characters:
· The crankshaft of the Mud Pump For Water Well Drilling adopts assembled structure, and the material is high-quality alloy steel forging. The pump has the characteristics of light weight, large carrying capacity, high anti-fatigue strength, and full balance so that the pump operates more smoothly.
· Gear is herringbone gear transmission. The tooth surface is treated by carburizing and quenching process, and in the grinding process, the tooth surface hardness is high, and the tooth profile error is small. It has the advantages of large carrying capacity, strong anti-pitting corrosion resistance, high transmission accuracy, high stability, and so on.
· Guide is casting copper alloy plate. Compared with the conventional cast iron plate, the guide has a high capacity and long service life.
· The main structure of the hydraulic end and conventional F pumps are the same.
· RS-QF1600 Mud Pump For Water Well Drilling compared with the ordinary F1600 pump, the whole machine has weight loss rate of 28.3%, more convenient for hoisting and transportation.
