Name: Large Displacement Oil Rig Mud Pump
Rated Input Power:: 373 KW (500 HP)
Stroke Per Minutes: 240 SPM
Stroke Length:: 7 Inch
Gear Ratio:: 4.578:1
Valve: API #4
Discharge Outlet Flange: 2 1/16" Flange
Approx Weight: 10692 Lb
Highlight:

373 KW Oil Rig Mud Pump

,

373 KW Rig Mud Pump

,

Coal Oil Rig Mud Pump

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 7K & ISO
Model Number: W-447
Payment & Shipping Terms
Packaging Details: 3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 20sets/month
Product Description

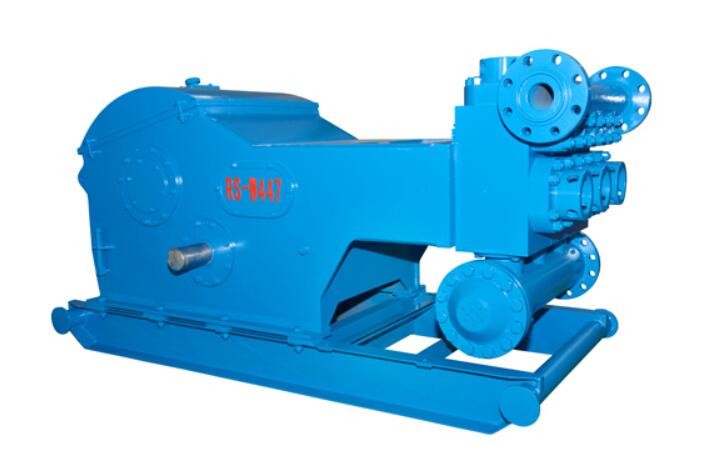

W-447 Oil Rig Mud Pump Large Displacement Reciprocating



W-447 Oil Rig Mud Pump is a kind of large displacement reciprocating pump designed for coal, geological engineering, and oil drilling and production industry. W-447 Oil Rig Mud Pump can be used for mud operation of coal and geological aspects and oilfield workover and shallow well drilling. This machine has a compact structure, small volume, and is lightweight.



W-447 Oil Rig Mud Pump specification :


Rated Input Power: 373 kW (500 HP)Max.

Stroke Per Minute: 240 SPMStroke Length: 180 mm (7")
Gear Ratio4.578:1
Max. Working Pressure: 21 MPa (3000 psi)

Valve: API#6
Piston Rod End : API#SA4
Max.Liner Size : 165.1 mm (6 1/2")
Suction Inlet Flange: 203.2 mm (8") flange
Discharge Outlet Flange: 52.4 mm(2 1/16") flange,34.5 MPa (5000 psi)

Pinion Shaft size: 95.2 mm (3.75")
Overall Dimension (L×WxH):2550×1245×1305 mm3(8.37×4.08×4.28 ft3)

Approx Weight: 4850 kg (10692 lb)





Parameters of W-447 Oil Rig Mud Pump



Liner Size in 6 1/2 6 1/4 6 5 1/2 5 4 1/2 4 3 1/2
Discharge Pressure MPa 7.3 8.0 8.6 10.3 12.4 15.3 19.4 20.7
psi 1059 1160 1247 1494 1798 2219 2813 3000
Stroke per Minute SPM Power kW(HP) Displacement L/s(GPM)
240

373

(500)

45.7

(724.3)

42.2

(668.9)

38.9

(616.6)

32.7

(518.3)

27.0

(428.0)

21.9

(347.1)

17.3

(274.2)

13.2

(209.2)

220

342

(458)

41.9

(664.1)

38.7

(613.4)

35.7

(565.8)

30.0

(475.5)

24.8

(393.1)

20.1

(318.6)

15.9

(252.0)

12.1

(191.8)

200

311

(417)

38.1

(603.9)

35.2

(557.9)

32.4

(513.5)

27.3

(432.7)

22.5

(356.6)

18.2

(288.5)

14.4

(228.2)

11.0

(174.4)

180

280

(375)

34.3

(543.7)

31.7

(502.4)

29.2

(462.8)

24.5

(388.3)

20.3

(321.8)

16.4

(259.9)

13.0

(206.1)

9.9

(156.9)

160

249

(333)

30.5

(483.4)

28.2

(447.0)

25.9

(410.5)

21.8

(345.5)

18.0

(285.3)

14.6

(231.4)

11.5

(182.3)

8.8

(139.5)

100

155

(208)

19.0

(301.2)

17.6

(279.0)

16.2

(256.8)

13.6

(215.6)

11.3

(179.1)

9.1

(144.2)

7.2

(114.1)

5.5

(87.2)

1

1.55

(2.08)

0.190

(3.012)

0.176

(2.790)

0.162

(2.568)

0.136

(2.156)

0.113

(1.791)

0.091

(1.442)

0.072

(1.141)

0.055

(0.872)

● Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.





W-447 Oil Rig Mud Pump Details

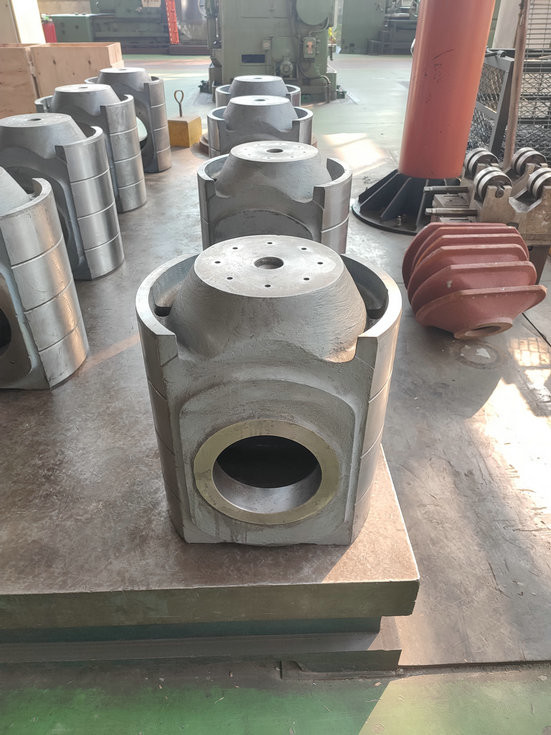

Frame
The Mud Pump Oil Rig frames are welded with steel plates and processed to
eliminate stress after welding, therefore. There are reinforced plates at the seats
of the crankshaft and main bearing so that they have good stiffness and strength.
Crankshaft
The crankshaft of the Mud Pump Oil Rig is in a balanced structure with welded forged parts. It
is light and can operate smoothly without vibration. Both sides of the
crankshaft are equipped with double-aligning spherical roller bearings to ensure stability in operation and to improve its bearing capacity.
Pinion Shaft
It is made of forge alloy steel, herringbone gears (integral) are machined
on the shaft and it adopts a medium hard tooth surface. There is a shaft
extension at both ends, where bell pulleys or chain wheels may be installed.
Crosshead
The crosshead is made of a one-piece cast with nodular cast iron, so the
crosshead has good abrasion resistance. The structure of top and bottom
guidance is adopted for crossheads to regulate the concentricity by
adding a gasket at the bottom guidance. The extension rods are connected
to the crossheads by flange bolts with pin holes, to ensure the
concentricity of the crosshead and the extension rods. The packing adopts
a double-layer sealing structure, which realizes good seal performance.

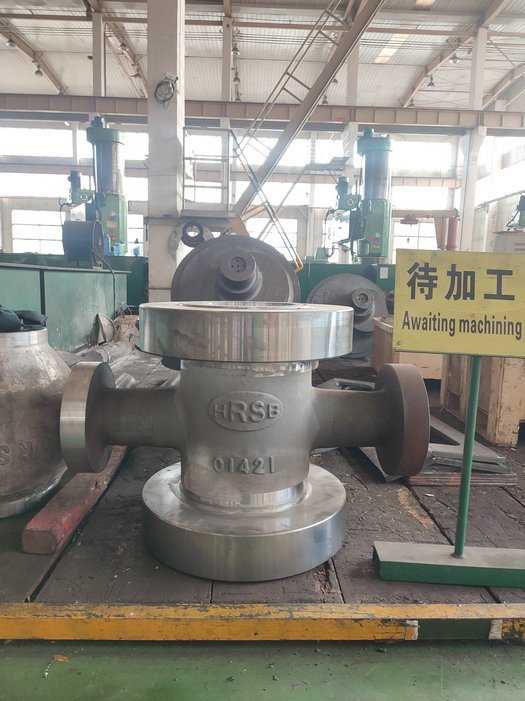

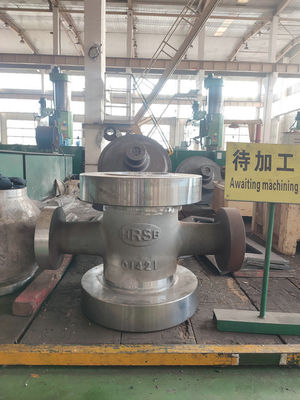

Fluid Cylinder
The cylinder is made of forge alloy steel and adopts a straight-way
structure. The hydraulic cylinder has a small size and higher volume
efficiency. The cylinder surface is processed by chemical plating in tortoise the corrosion resistance. The three hydraulic cylinders of a
pump are interchangeable.
Liner
W440/446(500HP) Mud Pump Oil Rig has the same liner O.D. The liners are
mounted tightly on the end face of the hydraulic cylinder by using squareness
capping and bolts. Sealing between the liner and the hydraulic cylinder is
realized by rectangular rubber gaskets.
Lubrication System
The pump adopts forced lubrication. In the oil tank, there is a gear oil
pump, which transmits pressure oil to crossheads guidance as well as the
bearings, to realize forced lubrication and cooling.
Spraying System
Mud Pump Oil Rig adopts a power-driven spraying system
