373 KW W-447 Oil Rig Mud Pump Large Displacement Reciprocating For Coal

Large Image : 373 KW W-447 Oil Rig Mud Pump Large Displacement Reciprocating For Coal

Product Details:

Place of Origin:	China
Brand Name:	Hebei Pantu
Certification:	API 7K & ISO
Model Number:	W-447

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10000USD~50000USD
Packaging Details:	3302mm1671mm1412mm(13ft6.85ft5.56ft)
Delivery Time:	45 days
Payment Terms:	L/C,T/T
Supply Ability:	20sets/month

Contact Now

373 KW W-447 Oil Rig Mud Pump Large Displacement Reciprocating For Coal

Description

Name:	Large Displacement Oil Rig Mud Pump	Rated Input Power::	373 KW (500 HP)
Stroke Per Minutes:	240 SPM	Stroke Length::	7 Inch
Gear Ratio::	4.578:1	Valve:	API #4
Discharge Outlet Flange:	2 1/16" Flange	Approx Weight:	10692 Lb
Highlight:	373 KW Oil Rig Mud Pump , 373 KW Rig Mud Pump , Coal Oil Rig Mud Pump

W-447 Oil Rig Mud Pump Large Displacement Reciprocating (373 KW)

Product Overview

The W-447 Oil Rig Mud Pump is a large displacement reciprocating pump designed for coal, geological engineering, and oil drilling applications. Suitable for mud operations in coal/geological work and oilfield workover/shallow well drilling, this pump features a compact structure, small footprint, and lightweight design.

Key Features

Durable Construction: High-strength alloy steel fabrication for extended service life in harsh drilling conditions
High Pumping Efficiency: Optimized fluid end design ensures steady displacement with minimal pulsation
Flexible Power Options: Compatible with both electric motor and diesel engine drives
Easy Maintenance: Modular design allows quick replacement of fluid end components to minimize downtime
Enhanced Lubrication: Combination splash and forced lubrication system prolongs bearing life
Certified Quality: Manufactured to API Spec 7K and ISO 9001 standards

Technical Specifications

Rated Input Power	373 kW (500 HP)
Max. Stroke Per Minute	240 SPM
Stroke Length	180 mm (7")
Gear Ratio	4.578:1
Max. Working Pressure	21 MPa (3000 psi)
Valve	API#6
Piston Rod End	API#SA4
Max. Liner Size	165.1 mm (6 1/2")
Suction Inlet Flange	203.2 mm (8") flange
Discharge Outlet Flange	52.4 mm (2 1/16") flange, 34.5 MPa (5000 psi)
Pinion Shaft Size	95.2 mm (3.75")
Dimensions (L×W×H)	2550×1245×1305 mm (8.37×4.08×4.28 ft)
Weight	4850 kg (10692 lb)

Performance Parameters

Liner Size (in)	6 1/2		6 1/4		6		5 1/2		5		4 1/2		4		3 1/2
Liner Size (in)	MPa	psi	MPa	psi	MPa	psi	MPa	psi	MPa	psi	MPa	psi	MPa	psi	MPa	psi
Discharge Pressure	7.3	1059	8.0	1160	8.6	1247	10.3	1494	12.4	1798	15.3	2219	19.4	2813	20.7	3000

Performance data calculated with 90% mechanical efficiency and 100% volumetric efficiency.

Applications

Onshore and offshore oil drilling rigs
Geothermal drilling projects
Coalbed methane drilling
Large-diameter water well drilling

Why Choose Our Mud Pump?

With a proven track record in major oilfields across the Middle East, North America, Russia, and Africa, our W-447 Mud Pump is backed by a global spare parts supply network and comprehensive after-sales service.

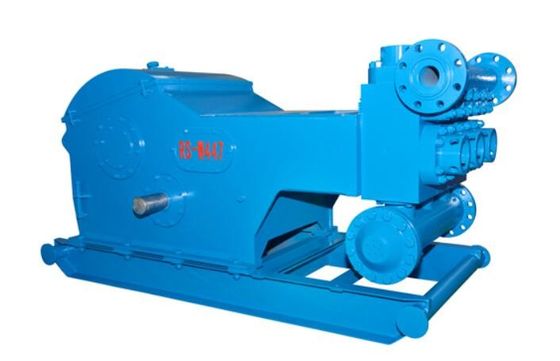

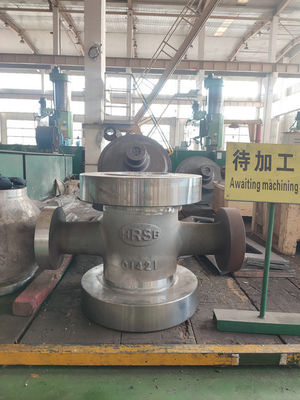

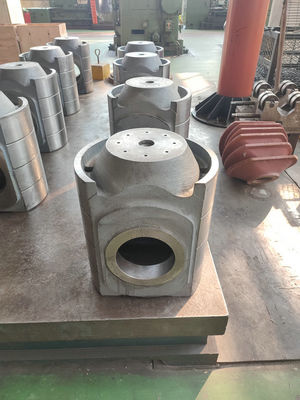

Product photos

373 KW W-447 Oil Rig Mud Pump Large Displacement Reciprocating For Coal 0
