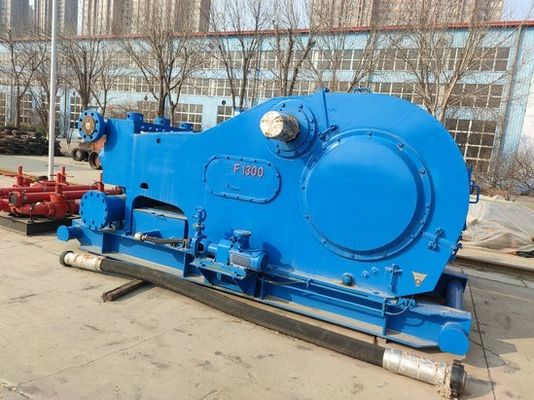

F1300 970 kW Oilfield Mud Pump Pumping Unit
F-1300 Oilfield Mud Pump can be used to circulate the drilling fluids, clean the bottom of the hole, carry the drill cuttings out of the hole, cool, clean and lubricate the drill bit, and support the well in drilling operation in the oil and gas field, F-1300 Oilfield Mud Pump is a kind of horizontal medium-speed triplex single acting piston pump. F-1300 Oilfield Mud Pump mainly suits Rig 32-45 with drilling depths of 3200m to 4500m.
Parameters of F-1300 Oilfield Mud Pump
| Liner Size | in | 7 | 6 3/4 |
6 1/2
|
6 1/4
|
6
|
5 1/2
|
5 |
| Discharge Pressure | Mpa |
19.2
|
20.6
|
22.3
|
24.1
|
26.1
|
31.1
|
34.5
|
| psi |
2785
|
2988
|
3234 |
3495 |
3785
|
4510
|
5000
|
|
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | ||||||
| 130 |
1050
(1408)
|
49.19
(779.6)
|
45.74
(725.0)
|
42.41
(672.2)
|
39.22
(621.6)
|
36.14
(572.8)
|
30.36
(481.2)
|
25.10
(397.8)
|
| 120 |
*970
(1300)
|
45.41
(719.7)
|
41
(649.8)
|
39.15
(620.5)
|
36.20
(573.7)
|
33.36
(528.7)
|
28.03
(444.2)
|
23.17
(367.2)
|
| 110 |
889
(1192)
|
41.63
(659.8)
|
38.07
(603.4)
|
35.89
(568.8)
|
33.18
(525.9)
|
30.58
(484.7)
|
25.69
(407.1)
|
21.24
(336.6)
|
| 100 |
808
(1083)
|
37.84
(599.7)
|
35.18
(557.6)
|
32.63
(517.1)
|
30.17
(478.2)
|
27.8
(440.6)
|
23.36
(370.2)
|
19.31
(306.0)
|
| 90 |
727
(975)
|
34.06
(539.8)
|
31.67
(501.9)
|
29.36
(465.3)
|
27.15
(430.3)
|
25.02
(396.5)
|
21.02
(333.1)
|
13.38
(212.0)
|
| 50 |
404
(541)
|
18.92
(299.8)
|
17.59
(278.8)
|
16.31
(258.5)
|
15.08
(239.0)
|
13.9
(220.3)
|
11.68
(185.1)
|
9.65
(152.9)
|
| 1 |
8.08
(10.8)
|
0.3784
(6.00)
|
0.3518
(5.57)
|
0.3518
(5.57)
|
0.3263
(5.17)
|
0.278
(4.40)
|
0.2336
(3.70)
|
0.1931
(3.06)
|
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | ||||||||
| --The * present the recommendatory SPM and input power when the mud pump runs continuously. | ||||||||
