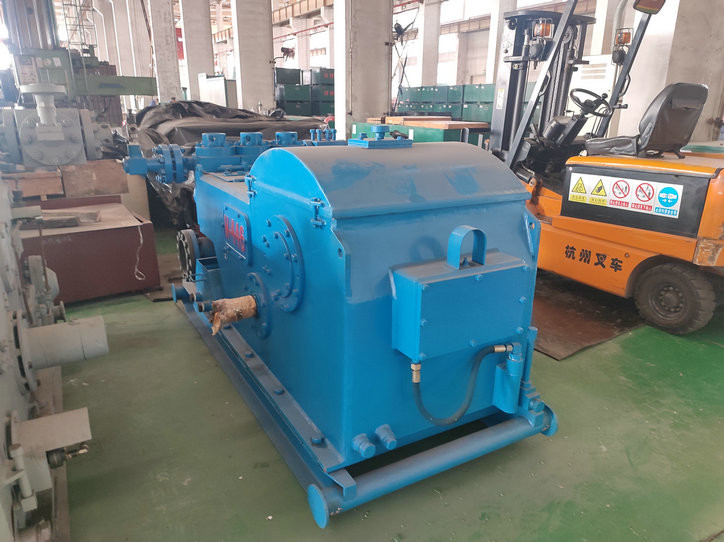

F1000 1000hp Oilfield Mud Pump Triplex Mud Pump
F1000 1000hp Oilfield Mud Pump Features
Parameters of F1000 1000hp Oilfield Mud Pump
| Liner Size | in | 6 3/4 |
6 1/2
|
6 1/4
|
6
|
5 1/2
|
5 | 4 1/2 |
| Discharge Pressure | Mpa |
16.4
|
17.6
|
19.1
|
20.7
|
24.6
|
29.8
|
34.5
|
| psi |
2380
|
2550
|
2770 |
3000
|
3570
|
4320
|
5000
|
|
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | ||||||
| 150 |
799
(1071)
|
43.92
(696.1)
|
40.71
(645.2)
|
37.71
(597.7)
|
34.71
(550.1)
|
29.14
(461.8)
|
24.11
(382.1)
|
19.50
(309.0)
|
| 140 |
*746
(1000)
|
41
(649.8)
|
38
(602.3)
|
35.2
(557.9)
|
32.4
(513.5)
|
27.2
(431.1)
|
22.5
(356.6)
|
18.2
(288.4)
|
| 130 |
693
(929)
|
38.07
(603.4)
|
35.28
(559.1)
|
32.68
(517.9)
|
30.1
(477.0)
|
25.26
(400.3)
|
20.89
(331.1)
|
16.9
(267.8)
|
| 120 |
639
(857)
|
35.14
(556.9)
|
32.57
(516.2)
|
30.12
(477.4)
|
27.77
(440.1)
|
23.3
(369.3)
|
19.28
(305.5)
|
15.6
(247.2)
|
| 110 |
586
(786)
|
32.21
(510.5)
|
29.85
(473.1)
|
27.66
(438.4)
|
25.46
(403.5)
|
21.37
(338.7)
|
17.68
(280.2)
|
14.3
(226.6)
|
| 110 |
533
(714)
|
29.28
(464.0)
|
27.14
(430.1)
|
25.14
(398.4)
|
23.14
(366.7)
|
19.43
(307.9)
|
16.07
(254.7)
|
13
(206.0)
|
| 1 |
5.33
(7.14)
|
0.293
(4.64)
|
0.271
(4.29)
|
0.251
(3.97)
|
0.231
(3.66)
|
0.194
(3.07)
|
0.161
(2.55)
|
0.130
(2.06)
|
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | ||||||||
| --The * present the recommendatory SPM and input power when the mud pump runs continuously. | ||||||||
Specification of F1000 1000hp Oilfield Mud Pump
Rated input Power: 746 kW (1000 HP)
Stroke Per Minute: 140 SPM
Stroke Length: 254 mm (10")
Gear Ratio: 4.207:1
Max. Working Pressure: 34.5 MPa (5000 psi)
Valve: API#6
Max.Liner Size : 171.4 mm (6 3/4")
Suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange,34.5 MPa (5000 psi)
Overall Dimension (L×W×H):4267×2350×1862 mm3(14×7.71×6.11 ft3)
Approx Weight: 16542 kg (36469 lb)
