API 7K F500 Compact Drilling Mud Pump 500 Horse Power

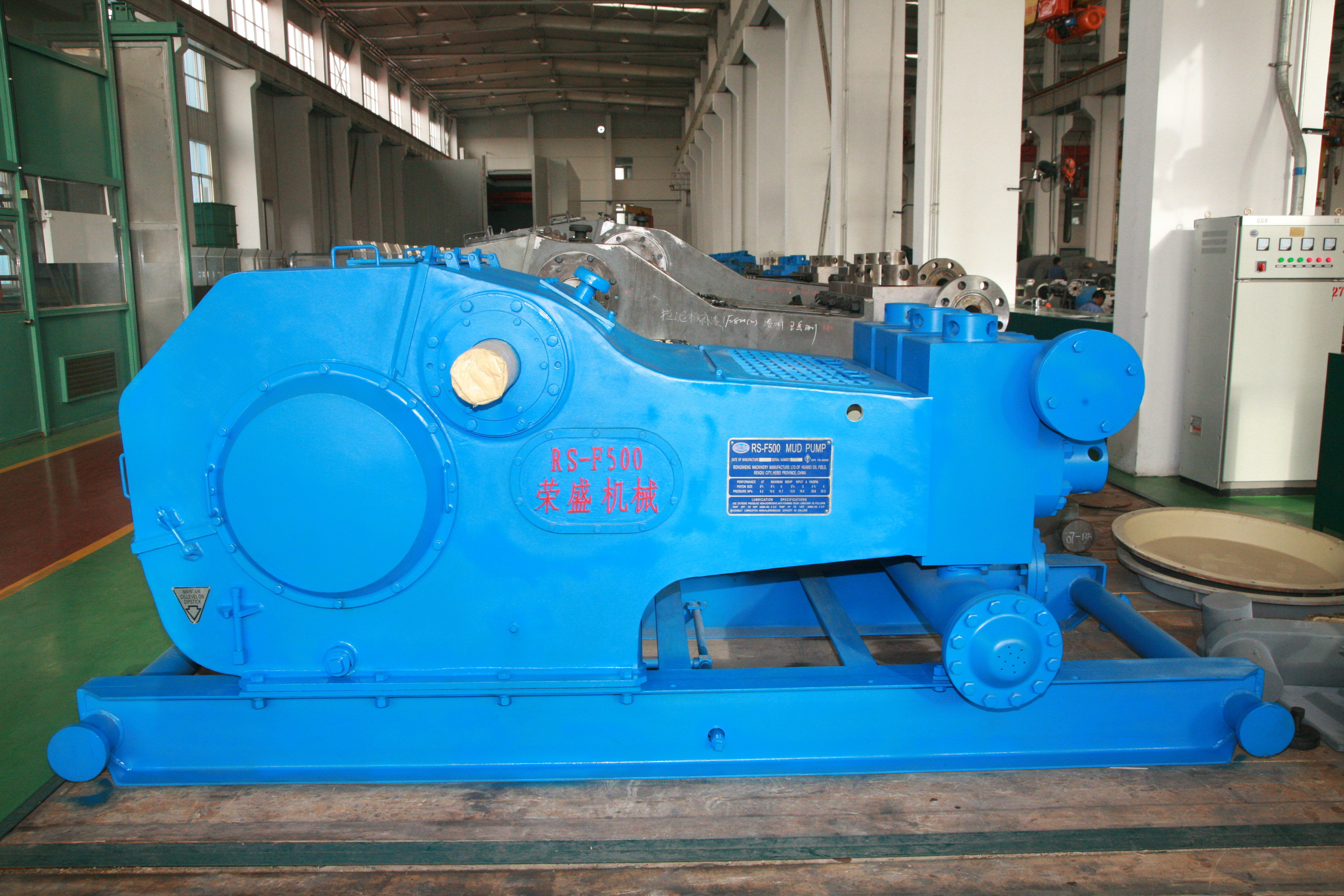

Large Image : API 7K F500 Compact Drilling Mud Pump 500 Horse Power

Product Details:

Place of Origin:	China
Brand Name:	RS
Certification:	API 7K
Model Number:	F500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	1000USD-10000USD
Packaging Details:	Iron case
Delivery Time:	7 days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET per month

Contact Now

API 7K F500 Compact Drilling Mud Pump 500 Horse Power

Description

Specification:	F500	Rated Input Power:	368kw (500HP)
Rated Frequency Of Stroke:	165stoke/min（165SPM）	Stoke:	190.5mm（7 1/2”）
Ratio Of Gear:	4.286:1	Maximum Working Pressure:	5000psi
Maximum Diameter Of The Cylinder Liner:	6 3/4"	Standard:	API 7K
Highlight:	API 7K Drilling Diesel Driven Pump , Drilling Mud Pump 500hp , Compact Drilling Mud Pump

Performance parameters

RS-F500 (the British system) Relational Diagram of Dill Pump Displacement and Pressure
Diameter of the cylinder jacket		in		6 3/4		6 1/2	6	5 1/2	5	4 1/2	4
Output pressure		MPa		9.2		10	11.7	13.9	16.8	20.8	26.3
Output pressure		psi		1315		1430	1670	1985	2400	2970	3760
Frequency of the stroke	Input power			Displacement L/s(Litre /second)
Stroke/min	kW		Horsepower	Displacement L/s(Litre /second)
165	368		500	36.2	33.6		28.6	24	19.9	16.1	12.7
150	334.5		455	32.9	30.55		26	21.8	18.1	14.64	11.55
140	312.2		424	30.72	28.51		24.27	20.36	16.88	13.66	10.78
130	289.9		394	28.52	26.47		22.53	18.91	15.68	12.68	10.01
120	267.6		364	26.33	24.44		20.8	17.45	14.47	11.71	9.24
110	245.3		333	24.1	22.4		19.07	16	13.27	10.73	8.46
1	2.23		3.03	0.219	0.204		0.173	0.145	0.121	0.098	0.077
Set Mechanical efficiency η=90%,Block coefficient α=100%, volumetric efficiency= 100%

Technical specification

parameters	Model of the dill pump
parameters	RS-F500
Rated input power	368kw (500HP)
Rated frequency of stroke	165stoke/min(165SPM)
Stoke	190.5mm(7 1/2”)
Ratio of gear	4.286:1
Maximum working pressure	34.5Mpa(5000psi)
Cage	API #5
Maximum diameter of the cylinder liner	6 3/4″
Maximum pumping pressure of the cylinder liner	9.2MPa
Suction pipe	203.2mm(8”)
Outlet pipe	4” flange(5000psi)
Pinion shaft diameter	139.7mm(5 1/2”)
Key	31.75x31.75 mm (1 1/4x1 1/4) ″
External Dimensions (main machine)	3639X2369X2315
Weight (main machine)	9543kg
