A mud pump is a type of pump used in drilling operations within the oil and gas industry and in other applications such as mining and geothermal drilling. It plays a crucial role in the drilling process by circulating drilling fluid. Its main functions are Lubrication and Cooling, Cuttings Removal, Pressure Control, Wellbore Stability, Data Collection, etc.

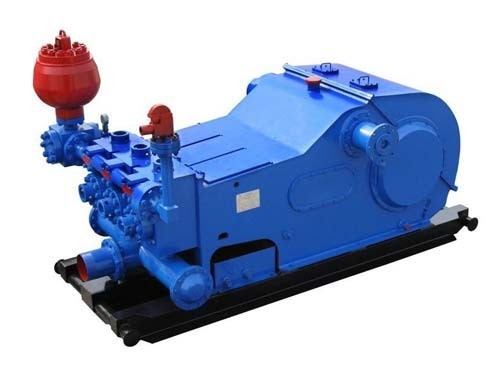

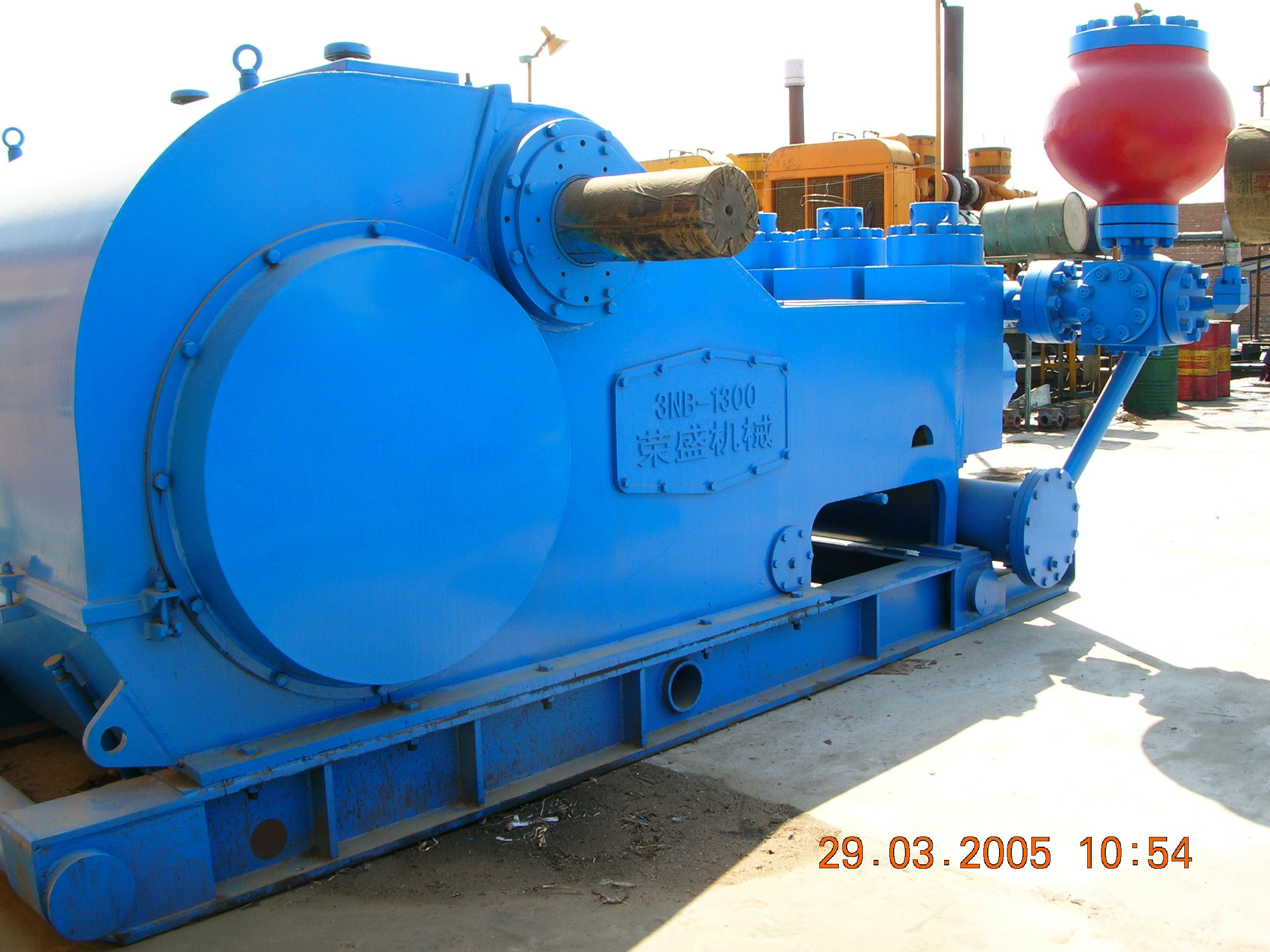

F2200 drilling mud pump has a small volume and lightweight. It can be used in the volume and quality index limitation occasions, such as marine, swamp, and jungle regions.
It also can meet the requirements of high-pressure jet drilling technology. The maximum working pressure can reach 51.7MPa (7500psi).
Compared with the F-1600 pump, the whole machine weight loss of 5.5 tons. And it has the advantages of advanced structure, lightweight, stable work, long life, and easy to maintain.
F2200 Drilling Mud Pump Parameter:
Rated input power: 1641kW(2200HP)
Stroke per minute: 110 SPM
Stroke length: 13''
Gear ratio: 3.969:1
Max working pressure: 7500psi
Vale: API#8
Max liner size: 9 1/20''
Suction inlet flange: 10'' Flange
Discharge outlet flange: 5 1/8'' Flange 10000psi
Dimension (L x W x H): 16.62x8.75x7.01 ft
Weight: 62567lb
Liner Size | mm | 230 | 220 | 210 | 200 | 190 | 180 | 170 | 160 | 150 | 140 |
Discharge Pressure |
Mpa | 19.5 | 21.7 | 23.5 | 25.8 | 28.7 | 31.9 | 35.8 | 40.4 | 46.0 | 51.7 |
Discharge Pressure |
psi | 2823 | 3141 | 3402 | 3735 | 4155 | 4618 | 5183 | 5849 | 6660 | 7500 |
Stroke per Minute SPM |
Power kW(HP) |
Displacement L/s | |||||||||
110 |
1640 (2200) |
75.5 | 69 | 69.2 | 57.1 | 51.5 | 46.2 | 41.2 | 36.5 | 32.1 | 28.0 |
100 |
1490 (2000) |
68.6 | 62.7 | 57.2 | 51.9 | 46.8 | 42 | 37.5 | 33.2 | 29.2 | 25.5 |
90 |
1342 (1800) |
61.8 | 56.5 | 51.5 | 46.7 | 42.1 | 37.8 | 33.7 | 29.9 | 26.6 | 22.9 |
80 |
1192 (1600) |
54.9 | 50.2 | 45.7 | 41.5 | 37.5 | 33.6 | 30.0 | 26.5 | 23.3 | 20.3 |
50 |
745.5 (1000) |
34.3 | 31.4 | 28.6 | 25.9 | 23.4 | 21.0 | 18.7 | 16.6 | 14.6 | 12.7 |
1 | 14.9 (20) |
0.68 | 0.63 | 0.57 | 0.52 | 0.47 | 0.42 | 0.37 | 0.33 | 0.29 | 0.25 |
