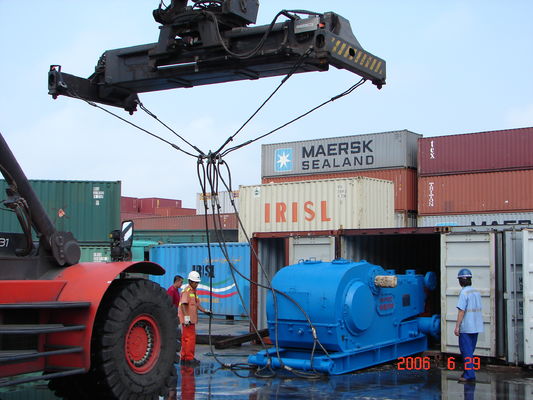

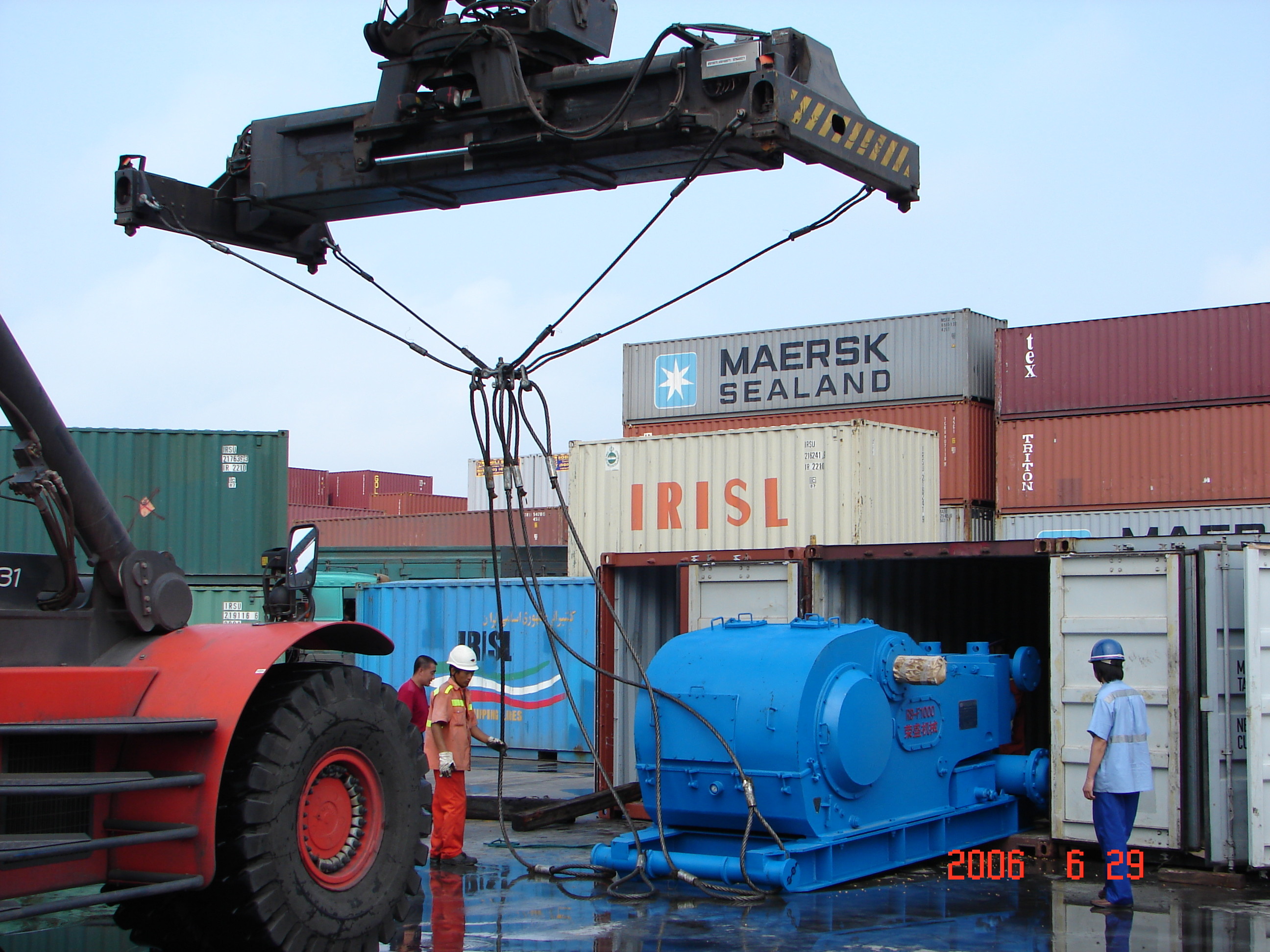

High Pressure 3000psi Drilling Mud Pump 260 Strokes Per Minute
The Drilling Mud Pump is a widely used tool in oilfield operations. It comes in liner sizes ranging from 6 inches to 3 1/2 inches, making it suitable for adopting a piston structure for easy maintenance and shallow drilling. For conditions with high pressure, pumps with liner sizes of 3 1/4 inches to 2 inches adopt a piston structure. The pump is compact and lightweight due to its small size. The gear pairs are in an integral herringbone structure, providing a large transmission torque.
Parameters of Drilling Mud Pump
Rated input power 368kw (500HP)
Maximum 260 strokes/minute (260SPM)
Continuous operation with 220 strokes per minute (220SPM)
Stroke 152.4mm (6 ″)
Gear ratio 4.578:1
Maximum working pressure 21Mpa
Valve chamber API 4#
Maximum cylinder liner diameter 6 ″
Maximum cylinder liner pump pressure 9.17Mpa
Suction nozzle 8 "flange
3 ″ (900 #) flange for discharge pipe outlet
Pinion shaft diameter 95.25 mm (3.75 ″)
Key 22.174x15.9mm
External dimensions of pump: (excluding base) 2479X1219X1103 mm
Weight 4513 kg
Certificates:
Meets API 7K, Q1 standard.
Brands:
We can supply BOMCO/RONGSHENG/HH/QINGZHOU brands also.
Drawing:
