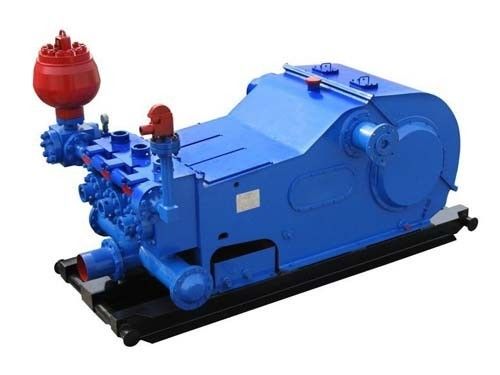

BOMCO 1600HP Water Well Drilling Mud Pump Light Weight Advanced Structure

The QF1600HL light high-pressure Water Well Drilling Mud pump is based on the QF1600 light pump power end structure with an upgraded fluid end structure. This pump combines the advantages of existing drilling pumps with modern design methods to create a compact, lightweight solution ideal for challenging environments including marine, swamp, and jungle regions. With a maximum working pressure of 51.7MPa (7500 psi), it meets the requirements of high-pressure jet drilling technology while weighing 5.5 tons less than comparable F-1600HL pumps.

• Durable Construction - Fabricated with high-strength alloy steel for longer service life under harsh drilling conditions
• High Pumping Efficiency - Optimized fluid end design ensures steady displacement and minimal pulsation
• Flexible Power Options - Compatible with both electric motor and diesel engine drives
• Easy Maintenance - Modular design allows quick replacement of fluid end parts, reducing downtime
• Enhanced Lubrication System - Combination of splash and forced lubrication for extended bearing life
• API & ISO Compliance - Designed and manufactured according to API Spec 7K and ISO 9001 standards

• Rated input Power: 1193 kW (1600 HP)
• Stroke Per Minute: 130 SPM
• Stroke Length: 279.4 mm (11")
• Gear Ratio: 3.778:1
• Max. Working Pressure: 52 MPa (7500 psi)
• Valve: API#7
• Max.Liner Size: 180 mm (7")
• Suction Inlet Flange: 304.8 mm (12") flange
• Discharge Outlet Flange: 103 mm (4 1/16") flange, 70 MPa (10000 psi)

• Onshore and offshore oil drilling rigs
• Geothermal drilling projects
• Coalbed methane drilling
• Large-diameter water well drilling

• Proven track record in Middle East, North America, Russia, and Africa oilfields
• Global spare parts supply and after-sales service network
