150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange

150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange
150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange 150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange 150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange 150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange

Large Image :  150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange

Product Details:
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 7K & ISO
Model Number: F800 Mud Pump
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10000USD~50000USD
Packaging Details: 3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Delivery Time: 45 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Contact Now

150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange

Description
Rated Input Power: 597KW(800HP) Stroke Per Minute: 150SPM
Stroke Length: 229mm(9") Gear Ratio: 4.185:1
Max. Working Pressure: 34.5MPa(5000psi) Suction Inlet Flange: 254mm(10") Flange
Discharge Outlet Flange: 130.2mm(5 1/8") Flange 34.5Mpa(5000psi) Overall Dimension: 3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
G.W.: 14000kgs(30865lbs)
Highlight:

10”Suction Inlet Mud Pump Assembly

,

9”Stroke Length Mud Pump Assembly

,

150SPM Mud Pump Assembly

150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange
Product Specifications
Attribute Value
Rated Input Power 597KW(800HP)
Stroke Per Minute 150SPM
Stroke Length 229mm(9")
Gear Ratio 4.185:1
Max. Working Pressure 34.5MPa(5000psi)
Suction Inlet Flange 254mm(10") flange
Discharge Outlet Flange 130.2mm(5 1/8") flange 34.5Mpa(5000psi)
Overall Dimension 3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
G.W. 14000kgs(30865lbs)
Product Overview
  • A mud pump (sometimes referred to as a mud drilling pump or drilling mud pump), is a reciprocating piston/plunger pump designed to circulate drilling fluid under high pressure (up to 7,500 psi or 52,000 kPa) down the drill string and back up the annulus. A mud pump is an important part of the equipment used for oil well drilling.
  • Drilling Mud Pump is manufactured under the standard of API Spec 7k, mud pump parts at the fluid end are interchangeable with the parts that are in conformity with API Spec.
  • Forced lubrication of the Drilling Mud Pump combined with splash lubrication to make the lubrication effect perfect.
  • The performance of the Drilling Mud Pump was greatly improved by the durable fluid end; and examination, mud pump repair, and mud pump maintenance are easier to make due to their independent structure.
Key Features
  • Durable Construction - Fabricated with high-strength alloy steel for longer service life under harsh drilling conditions.
  • High Pumping Efficiency - Optimized fluid end design ensures steady displacement and minimal pulsation.
  • Flexible Power Options - Compatible with both electric motor and diesel engine drives.
  • Easy Maintenance - Modular design allows quick replacement of fluid end parts, reducing downtime.
  • Enhanced Lubrication System - Combination of splash and forced lubrication for extended bearing life.
  • API & ISO Compliance - Designed and manufactured according to API Spec 7K and ISO 9001 standards.
Technical Specifications
Liner Size in 6 1/2 6 1/4 6 5 1/2 5 4 1/2 4
Discharge Pressure
14.6 15.8 17.2 20.4 24.7 30.5 34.5
psi 2118 2290 2495 2915 3582 4424 5000
Stroke per Minute (SPM) Power KW(HP) | Displacement L/s(GPM)
160 636 (853) 39.21 (621.4) 36.26 (574.7) 33.41 (529.5) 28.07 (444.9) 23.2 (367.7) 14.85 (235.2)
*150 *597 (800) 36.76 (582.6) 34 (538.9) 31.32 (496.4) 26.32 (417.1) 21.75 (344.7) 13.92 (220.6)
140 557.2 (693.3) 34.3 (543.6) 31.73 (502.9) 29.23 (463.3) 24.57 (389.4) 20.3 (321.7) 12.99 (205.8)
*Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.
*The * present the recommendatory SPM and input power when mud pump runs continuously.
Applications
  • Onshore and offshore oil drilling rigs
  • Geothermal drilling projects
  • Coalbed methane drilling
  • Large-diameter water well drilling
Why Choose Our Mud Pump?
  • Proven track record in Middle East, North America, Russia, and Africa oilfields.
  • Global spare parts supply and after-sales service network.
Product Photos

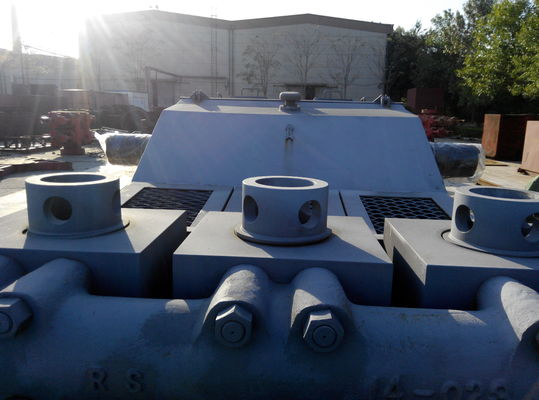

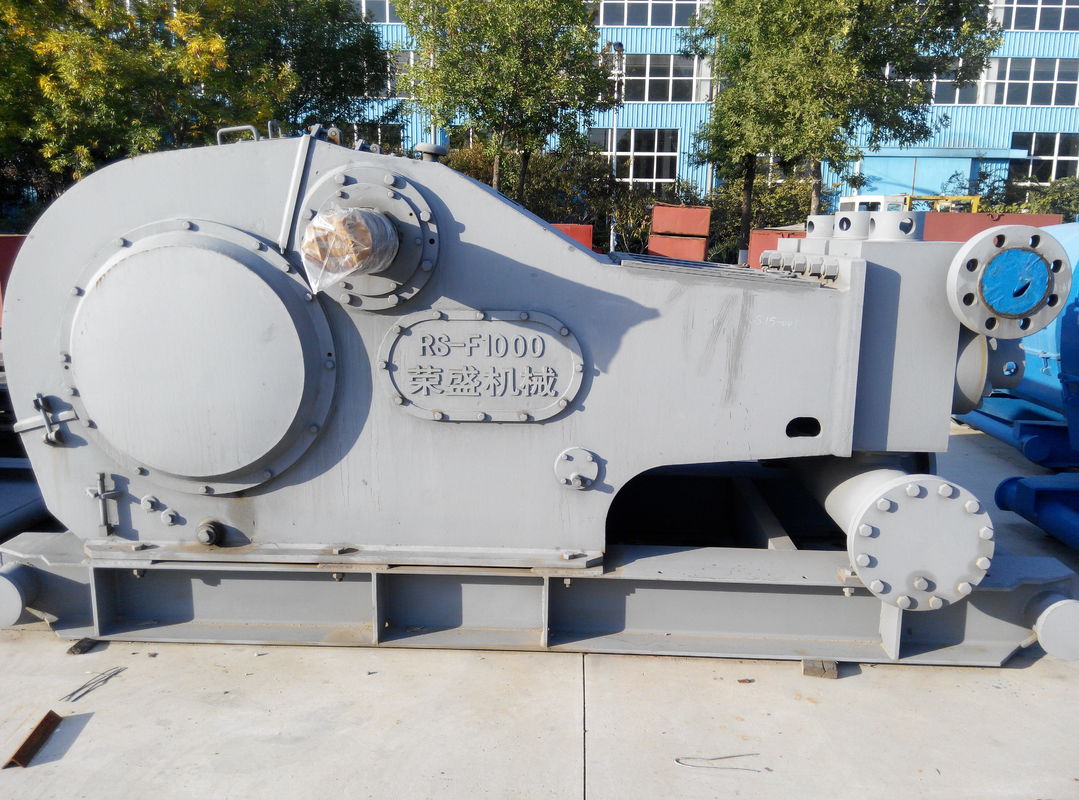

150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange 0

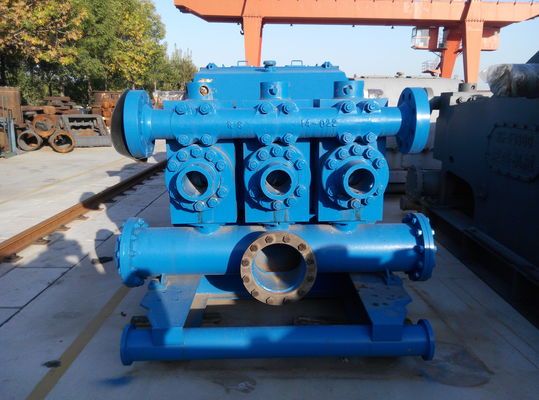

150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange 1

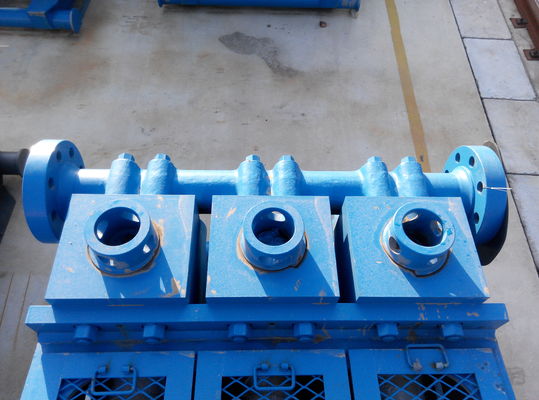

150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange 2
