F 1600 F 1300 HP Oil Drilling Mud Pump F1300FT ISO Certificate 970 KW

Large Image : F 1600 F 1300 HP Oil Drilling Mud Pump F1300FT ISO Certificate 970 KW

Product Details:

Place of Origin:	China
Brand Name:	Hebei Pantu
Certification:	API 7K & ISO
Model Number:	F1300FT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10000USD~50000USD
Packaging Details:	3302mm1671mm1412mm(13ft6.85ft5.56ft)
Delivery Time:	45 days
Payment Terms:	L/C,T/T
Supply Ability:	20sets/month

Contact Now

F 1600 F 1300 HP Oil Drilling Mud Pump F1300FT ISO Certificate 970 KW

Description

Name:	Oil Mud Pump	Rated Input Power ::	1300 HP
Stroke Per Minute::	120 SPM	Stroke Length::	304.8 Mm (12")
Gear Ratio::	4.206:1	Max. Working Pressure::	34.5 MPa
Max. Working Pressure:	5000 Psi	Usage:	Oil
Highlight:	970 KW Drilling Mud Pump , ISO Certificate Drilling Mud Pump , F1300FT Drilling Mud Pump

F 1600 F 1300 HP Oil Drilling Mud Pump F1300FT ISO Certificate 970 KW

Product Specifications

Attribute	Value
Name	Oil Mud Pump
Rated input Power	1300 HP
Stroke Per Minute	120 SPM
Stroke Length	304.8 mm (12")
Gear Ratio	4.206:1
Max. Working Pressure	34.5 MPa (5000 psi)
Usage	Oil

F1300FT 970 KW Oil Mud Pump Split Structure

The frame of the F1300FT Oil Mud Pump features a split structure design. The maximum weight of a single module is limited to 7496lb (3400kg) for aircraft transport capability. This design meets drilling needs in remote locations like jungles where transportation is challenging, while maintaining identical performance parameters to the standard F1300 drilling pump.

Key Features

Durable Construction: Fabricated with high-strength alloy steel for extended service life in harsh drilling conditions
High Pumping Efficiency: Optimized fluid end design ensures steady displacement with minimal pulsation
Flexible Power Options: Compatible with both electric motor and diesel engine drives
Easy Maintenance: Modular design enables quick replacement of fluid end components to reduce downtime
Enhanced Lubrication System: Combination splash and forced lubrication extends bearing life
API & ISO Compliance: Manufactured to API Spec 7K and ISO 9001 standards

Technical Specifications

Liner Size	in	7	6 3/4	6 1/2	6 1/4	6	5 1/2	5
Liner Size	in	Discharge Pressure
		Mpa	19.2	20.6	22.3	24.1	26.1	31.1	34.5
		psi	2785	2988	3234	3495	3785	4510	5000
Stroke per Minute (SPM)	Power KW(HP)	Displacement L/s(GPM)
130	1050 (1408)	49.17 (779.6)	45.74 (725.0)	42.41 (672.2)	39.22 (621.6)	36.14 (572.8)	30.36 (481.2)	25.10 (397.8)
120	*970 (1300)	45.41 (719.7)	41 (649.8)	39.15 (620.5)	36.20 (573.7)	33.36 (528.7)	28.03 (444.2)	23.17 (367.2)
110	889 (1192)	41.63 (659.8)	38.07 (603.4)	35.89 (568.8)	33.18 (525.9)	30.58 (484.7)	25.69 (407.1)	21.24 (336.6)
100	808 (1083)	37.84 (599.7)	35.18 (557.6)	32.63 (517.1)	30.17 (478.2)	27.8 (440.6)	23.36 (370.2)	19.31 (306.0)
90	727 (975)	34.06 (539.8)	31.67 (501.9)	29.36 (465.3)	27.15 (430.3)	25.02 (396.5)	21.02 (333.1)	13.38 (212.0)
50	404 (541)	18.92 (299.8)	17.59 (278.8)	16.31 (258.5)	15.08 (239.0)	13.9 (220.3)	11.68 (185.1)	9.65 (152.9)
1	8.08 (10.8)	0.3784 (6.00)	0.3518 (5.57)	0.3518 (5.57)	0.3263 (5.17)	0.278 (4.40)	0.2336 (3.70)	0.1931 (3.06)

Performance data calculated by 90% mechanical efficiency and 100% volumetric efficiency

* indicates recommended SPM and input power for continuous pump operation

Standard Specifications

Rated input Power: 970 kW (1300 HP)
Stroke Length: 304.8 mm (12")
Gear Ratio: 4.206:1
Max.Working Pressure: 34.5 MPa (5000 psi)
Valve: API#7
Max.Liner Size: 7"
Suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange, 34.5 MPa (5000 psi)
Overall Dimension (L×W×H): 4493×2493×1951 mm³ (14.74×8.18×6.40 ft³)
Approx Weight: 23609 kg (52050 lb)

Applications

Onshore and offshore oil drilling rigs
Geothermal drilling projects
Coalbed methane drilling
Large-diameter water well drilling

Why Choose Our Mud Pump?

Proven performance in major oilfields including Middle East, North America, Russia, and Africa
Global spare parts availability and comprehensive after-sales service network

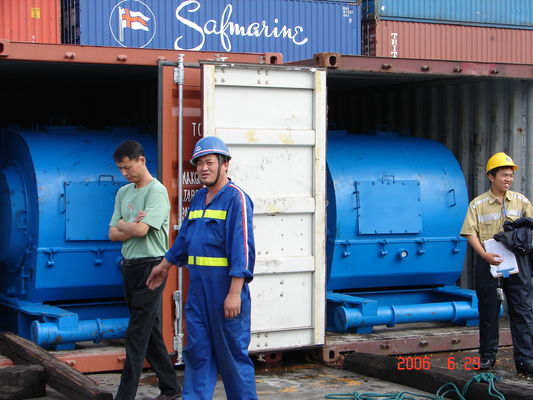

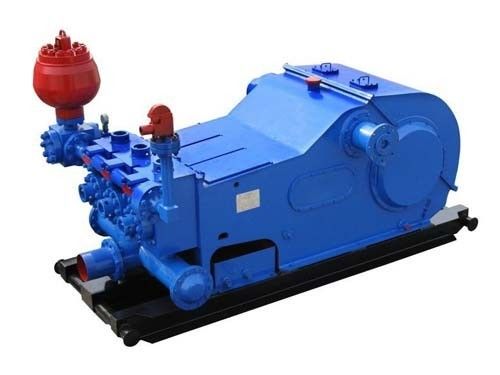

Product Photos
