F1300 Oilfield Mud Pump 5000 Psi Rig Mud Pump With Advanced Structure

1
MOQ
10000USD~50000USD
Price
F1300 Oilfield Mud Pump 5000 Psi Rig Mud Pump With Advanced Structure
Features Gallery Product Description Request A Quote
Features
Specifications
Name: F1300 Rig Mud Pump
Rated Input Power :: 1300 HP
Stroke Per Minute:: 120 SPM
Stroke Length:: 304.8 Mm
Gear Ratio:: 4.206:1
Type: Drill Rig Equipment
Max. Working Pressure: 5000 Psi
Valve: API#6
Highlight:

F1300 Oilfield Mud Pump

,

F1300 Rig Mud Pump

,

5000 Psi Rig Mud Pump
Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 7K & ISO
Model Number: F1300
Payment & Shipping Terms
Packaging Details: 3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 20sets/month
Product Description

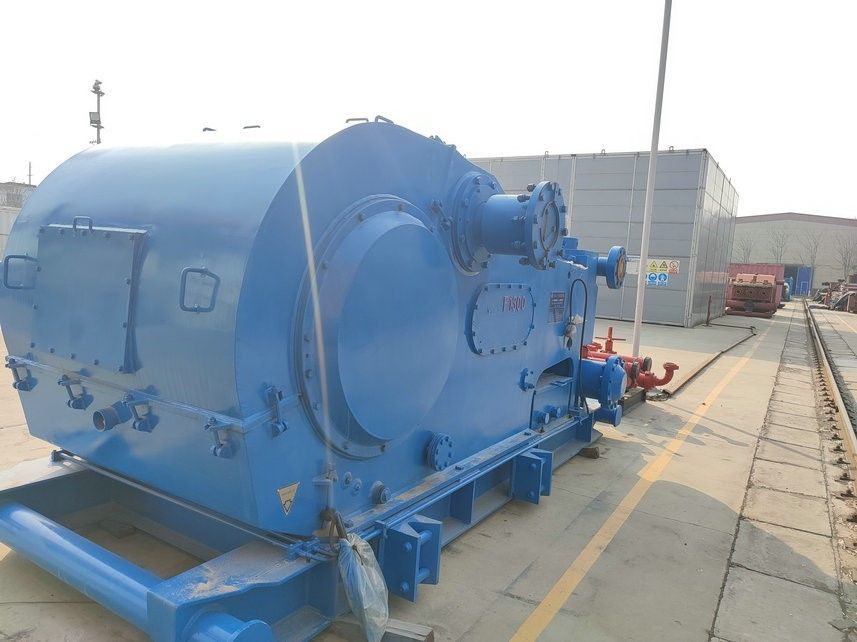

F1300 Rig Mud Pump Drill Rig Equipment



Feature of F1300 Rig Mud Pump

  • F1300 Rig Mud Pump Having a long stroke, being able to operate under low stroke to lengthen the use of expendable parts at the fluid end;
  • Forced lubrication combined with splash lubrication to make a lubrication effect;
  • F1300 Rig Mud Pump with Advanced structure, durable, can ensure itself to operate smoothly, and meet the special requirements of customers to drill medium deep wells;
  • Compact, safe, suction valve and discharge valve are interchangeable, main components of hydraulic cylinder and fluid end on each pump are interchangeable;

Parameters of F1300 Mud Pump Well Drilling





Liner Size in 7 6 3/4
6 1/2
6 1/4
6
5 1/2
 5
Discharge Pressure Mpa
19.2
20.6
22.3
24.1
26.1
31.1
34.5
psi
2785
2988

3234

3495
3785
4510
5000
Stroke per Minute
(SPM)		 Power
KW(HP)		   Displacement L/s(GPM)
130
1050
(1408)
49.19
(779.6)
45.74
(725.0)
42.41
(672.2)
39.22
(621.6)
36.14
(572.8)
30.36
(481.2)
25.10
(397.8)
120
*970
(1300)
45.41
(719.7)
41
(649.8)
39.15
(620.5)
36.20
(573.7)
33.36
(528.7)
28.03
(444.2)
23.17
(367.2)
110
889
(1192)
41.63
(659.8)
38.07
(603.4)
35.89
(568.8)
33.18
(525.9)
30.58
(484.7)
25.69
(407.1)
21.24
(336.6)
100
808
(1083)
37.84
(599.7)
35.18
(557.6)
32.63
(517.1)
30.17
(478.2)
27.8
(440.6)
23.36
(370.2)
19.31
(306.0)
90
727
(975)
34.06
(539.8)
31.67
(501.9)
29.36
(465.3)
27.15
(430.3)
25.02
(396.5)
21.02
(333.1)
13.38
(212.0)
50
404
(541)
18.92
(299.8)
17.59
(278.8)
16.31
(258.5)
15.08
(239.0)
13.9
(220.3)
11.68
(185.1)
9.65
(152.9)
1
8.08
(10.8)
0.3784
(6.00)
0.3518
(5.57)
0.3518
(5.57)
0.3263
(5.17)
0.278
(4.40)
0.2336
(3.70)
0.1931
(3.06)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.　　　　　　　　
--The * present the recommendatory SPM and input power when the mud pump runs continuously.　　　　　　　　



F1300 Mud Pump Well Drilling Specification :

Rated input Power : 970 kW (1300 HP)
Stroke Per Minute: 120 SPM
Stroke Length: 304.8 mm (12")
Gear Ratio: 4.206:1
Max. Working Pressure: 34.5 MPa (5000 psi)
Valve: API#7
Max.Liner Size : 180 mm(7")
suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange,34.5 MPa (5000 psi)
Overall Dimension (LxW×H):4685×2414×2003 mm3(15.37×7.92×6.57 ft3)
Approx Weight: 24572 kg (54172 lb)

Tag:

Triplex Mud Pump

Heavy Duty Mud Pump

Oil Well Mud Pump
