W-447 Oil Rig Mud Pump For Geological Prospecting
The W-447 Oil Rig Mud Pump is one of the principal pieces of equipment for geological prospecting. While core drilling, the pump
supplies the drilling hole with enough volume slurry or cleaning water and makes it circulate in the drilling hole in order to carry the rock debris up to the ground, to make the bottom of the drilling hole clean, to cool and lubricate the drilling tools, to protect the wall of the drilling hole and to help to drill faster. So the performance of W-447 Oil Rig Mud Pump affects the efficiency of drilling and safety in production directly.
W-447 Oil Rig Mud Pump specification :
Rated Input Power: 373 kW (500 HP)Max.
Stroke Per Minute: 240 SPMStroke Length: 180 mm (7")
Gear Ratio4.578:1
Max. Working Pressure: 21 MPa (3000 psi)
Valve: API#6
Piston Rod End : API#SA4
Max.Liner Size : 165.1 mm (6 1/2")
Suction Inlet Flange: 203.2 mm (8") flange
Discharge Outlet Flange: 52.4 mm(2 1/16") flange,34.5 MPa (5000 psi)
Pinion Shaft size: 95.2 mm (3.75")
Overall Dimension (L×WxH):2550×1245×1305 mm3(8.37×4.08×4.28 ft3)
Approx Weight: 4850 kg (10692 lb)
Parameters of W-447 Oil Rig Mud Pump
| Liner Size | in | 6 1/2 | 6 1/4 | 6 | 5 1/2 | 5 | 4 1/2 | 4 | 3 1/2 |
| Discharge Pressure | MPa | 7.3 | 8.0 | 8.6 | 10.3 | 12.4 | 15.3 | 19.4 | 20.7 |
| psi | 1059 | 1160 | 1247 | 1494 | 1798 | 2219 | 2813 | 3000 | |
| Stroke per Minute SPM | Power kW(HP) | Displacement L/s(GPM) | |||||||
| 240 |
373 (500) |
45.7 (724.3) |
42.2 (668.9) |
38.9 (616.6) |
32.7 (518.3) |
27.0 (428.0) |
21.9 (347.1) |
17.3 (274.2) |
13.2 (209.2) |
| 220 |
342 (458) |
41.9 (664.1) |
38.7 (613.4) |
35.7 (565.8) |
30.0 (475.5) |
24.8 (393.1) |
20.1 (318.6) |
15.9 (252.0) |
12.1 (191.8) |
| 200 |
311 (417) |
38.1 (603.9) |
35.2 (557.9) |
32.4 (513.5) |
27.3 (432.7) |
22.5 (356.6) |
18.2 (288.5) |
14.4 (228.2) |
11.0 (174.4) |
| 180 |
280 (375) |
34.3 (543.7) |
31.7 (502.4) |
29.2 (462.8) |
24.5 (388.3) |
20.3 (321.8) |
16.4 (259.9) |
13.0 (206.1) |
9.9 (156.9) |
| 160 |
249 (333) |
30.5 (483.4) |
28.2 (447.0) |
25.9 (410.5) |
21.8 (345.5) |
18.0 (285.3) |
14.6 (231.4) |
11.5 (182.3) |
8.8 (139.5) |
| 100 |
155 (208) |
19.0 (301.2) |
17.6 (279.0) |
16.2 (256.8) |
13.6 (215.6) |
11.3 (179.1) |
9.1 (144.2) |
7.2 (114.1) |
5.5 (87.2) |
| 1 |
1.55 (2.08) |
0.190 (3.012) |
0.176 (2.790) |
0.162 (2.568) |
0.136 (2.156) |
0.113 (1.791) |
0.091 (1.442) |
0.072 (1.141) |
0.055 (0.872) |
| ● Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | |||||||||

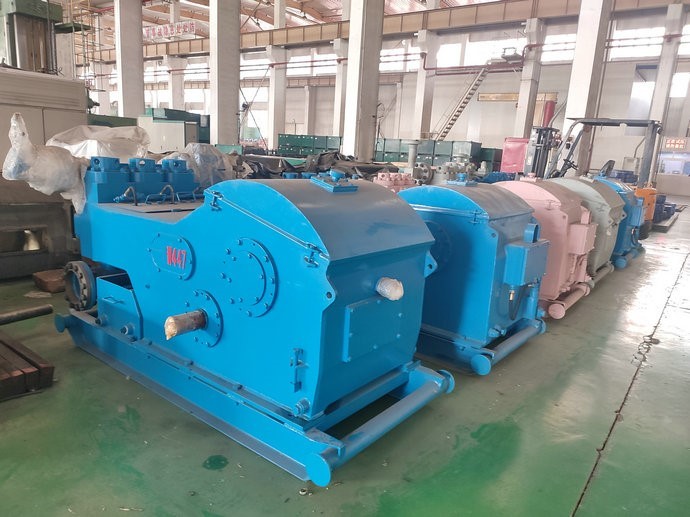

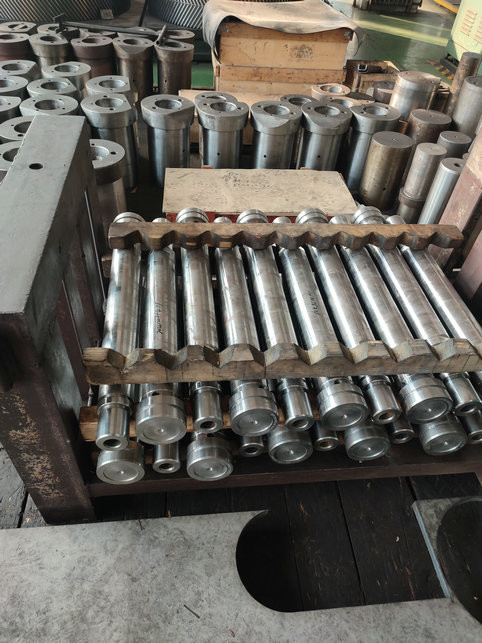

W-447 Oil Rig Mud Pump Details
