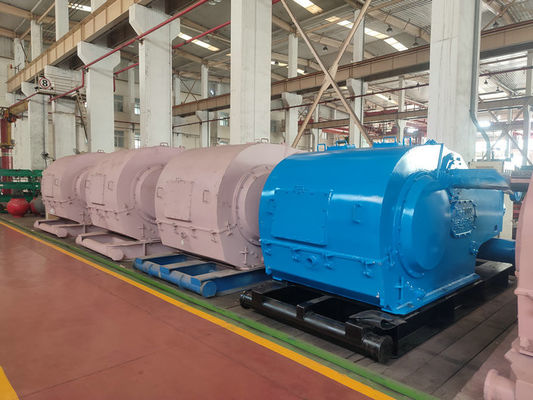

QF1600HL Triplex Mud Pumps With Advanced Structure
QF1600HL Triplex Mud Pumps Details
The Triplex Mud Pumps have features of advanced structure, small volume, reliable operation, easy maintenance.
The cylinder of Triplex Mud Pumps is made of alloy steel forgings, and the three cylinders of each pump are interchangeable.
The suction valve and discharge valve of Triplex Mud Pumps are interchangeable.
In order to enhance its corrosion resistance, the cylinder surface is processed by chemical nickel plating.
The design of a straight-through cylinder valve structure reduced the volume of the hydraulic cylinder and increased the volumetric efficiency
Parameters of QF1600HL Triplex Mud Pumps
| Liner Size | in | 7 | 6 3/4 |
6 1/2
|
6 1/4
|
6
|
5 1/2
|
5 | 4 1/2 |
| Discharge Pressure | Mpa |
23.7
|
25.56
|
27.6
|
29.8
|
32.31
|
38.5
|
46.79
|
51.7
|
| psi |
3437
|
3706
|
4002 |
4321 |
4685
|
5583
|
6785
|
7500
|
|
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | |||||||
|
140
|
1285
(1723
|
48.6
(770.3)
|
45.2
(716.4)
|
41.9
(664.1)
|
38.8
(615.0)
|
35.7
(565.8)
|
30.0
(475.5)
|
24.8
(393.0)
|
20.1
(318.6)
|
|
*130
|
*1193
(1600)
|
45.2
(716.4)
|
42.0
(665.7)
|
38.9
(616.5)
|
36.0
(570.6)
|
33.2
(526.2)
|
27.9
(442.2)
|
23.0
(364.5)
|
18.6
(294.8)
|
| 120 |
1101
(1477)
|
41.7
(660.9)
|
38.7
(613.4)
|
35.9
(569.0)
|
33.2
(526.2)
|
30.6
(485.0)
|
25.7
(407.3)
|
21.2
(336.0)
|
17.2
(272.6)
|
| 110 |
1009
(1354)
|
38.2
(605.5)
|
35.5
(562.7)
|
32.9
(521.5)
|
30.5
(483.4)
|
28.0
(443.8)
|
23.6
(374.0)
|
19.5
(309.0)
|
15.8
(250.4)
|
| 100 |
918
(1231)
|
34.7
(550.0)
|
32.3
(512.0)
|
30.0
(475.5)
|
27.7
(439.0)
|
25.5
(404.2)
|
21.4
(339.2)
|
17.7
(280.5)
|
14.3
(226.6)
|
| 50 |
459
(615)
|
17.4
(275.8)
|
16.1
(255.2)
|
15.0
(237.8)
|
13.8
(218.7)
|
12.7
(201.3)
|
10.7
(169.6)
|
8.8
(139.5)
|
7.2
(114.1)
|
| 1 |
9.18
(12.3)
|
0.347
(5.50)
|
0.323
(5.12)
|
0.300
(4.75)
|
0.277
(4.39)
|
0.255
(4.04)
|
0.214
(3.39)
|
0.177
(2.81)
|
0.143
(2.27)
|
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | |||||||||
| --The * present the recommendatory SPM and input power when the mud pump runs continuously. | |||||||||
QF1600HL Triplex Mud Pumps specification :
Rated input Power: 1193 kW (1600 HP)
Stroke Per Minute: 130 SPM
stroke Length: 279.4 mm (11")
Gear Ratio: 3.778:1
Max. Working Pressure: 52 MPa (7500 psi)
Valve: API#7
Max.Liner Size : 180 mm (7")
Suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 103 mm (4 1/16") flange, 70 MPa (10000 psi)
Overall Dimension (L×W×H):4804×2219×1984 mm3(15.76×7.28×6.51 ft3)
Approx Weight: 22380 kg (49339 lb)
