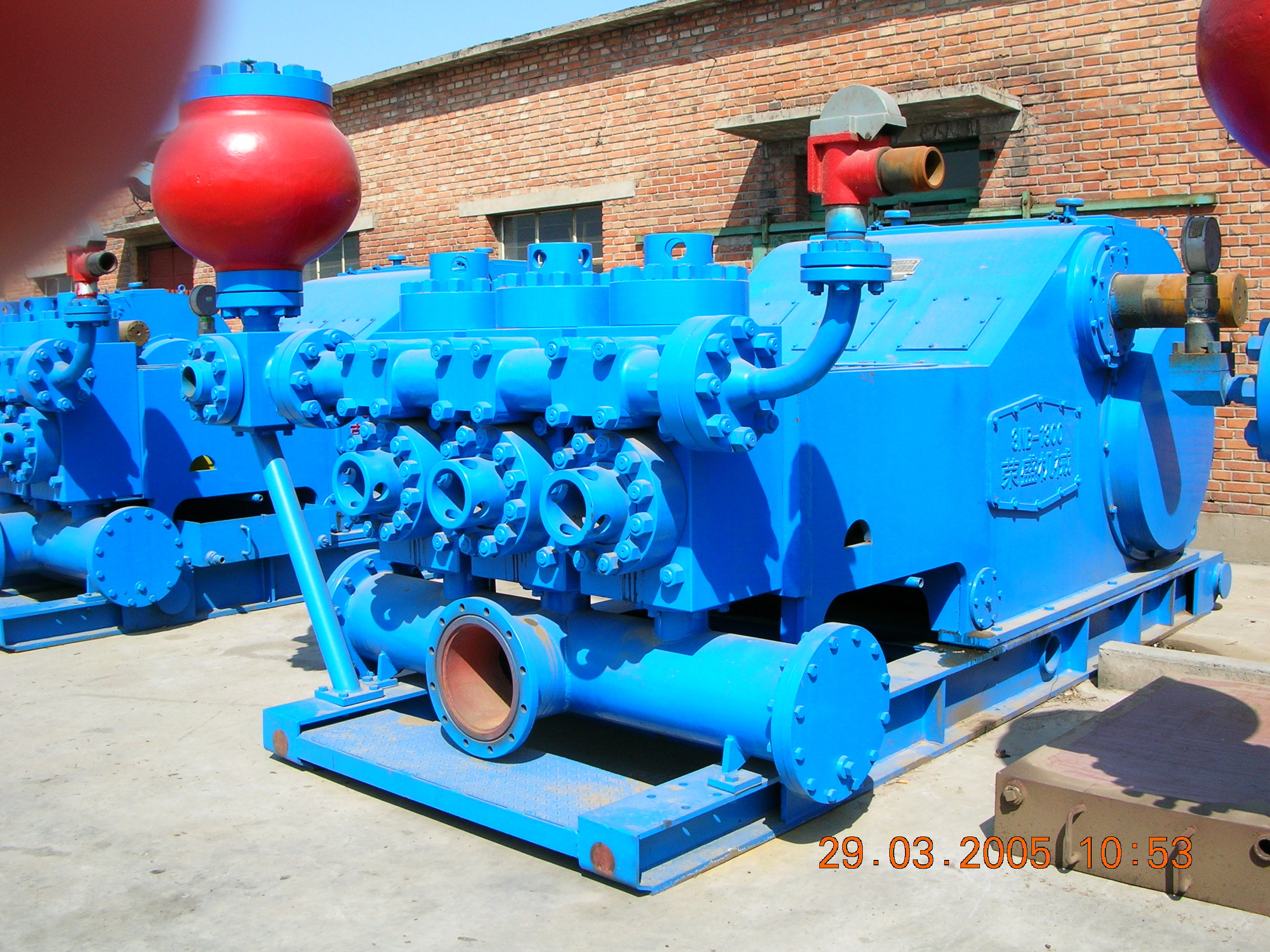

RS F800 Drilling Oil Rig Mud Pump 5000psi 800 Horse Power

1 set
MOQ
10000USD-15000USD
Price
RS F800 Drilling Oil Rig Mud Pump 5000psi 800 Horse Power
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Input Power: 590kw (800HP)
Rated Frequency Of Stroke: 150 Strokes/Min (150SPM)
Stroke: 229mm(9″)
Gear Ratio: 4.185：1
Max. Operating Pressure: 5000psi
Max. Cylinder Liner Diameter: 170mm
Certificate: API 7K
Use: Used For Oil Drilling At Rig Site
Highlight:

800hp Oil Rig Mud Pump

,

Drilling Oil Rig Mud Pump

,

Oil Mud Pump 5000psi
Basic Infomation
Place of Origin: China
Brand Name: RS
Certification: API 7K
Model Number: F800
Payment & Shipping Terms
Packaging Details: Iron case
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 10 SET per month
Product Description

F800 drilling mud pump, horse power 800HP,



Technical Specification:


Parameter
Pump Model
RS-F1000 RS-F800
Rated Input Power 735kW(1000HP) 590kW(800HP)

Rated Frequency of Stroke

140 Strokes/Min

(140SPM)

150 Strokes/Min

(150SPM)
Stroke 254mm(10″) 229mm(9″)
Gear Ratio 4.207:1 4.185:1
Max. Operating Pressure 34.5MPa 34.5MPa
Valve Chamber API#6 API# 6
Max. Cylinder Liner Diameter 170mm 170mm
Max. Cylinder Liner Pump Pressure 16.4MPa (2410psi) 13.6MPa (1954psi)
Suction Pipe Orifice 305mm(12″)  254mm (10″) Flange
Discharge Pipe Orifice 5 1/8″5000psi Flange 5 1/8″5000psi Flange
Pinion Shaft Diameter 196.9mm(7 3/4″) 177.8mm(7″)
Key 50.8ⅹ50.8mm(2″ⅹ2″) 44.4x44.45mm(1 3/4x1 3/4″)
Overall Dimension (Main Frame) 4267X2350X1862mm 3963X2000X1694mm
Weight (Main Frame) 18642kg 14000kg





RS-F800 Drilling Pump Displacement and Pressure Relation Form
Cylinder Liner Diameter mm 170 160 150 140 130 120 110 100
Discharge Pressure MPa 13.6 15.4 17.5 20.1 23.3 27.3 32.5 34.5
psi 1971 2232 2536 2913 3377 3957 4710 5000
Frequency of Stroke Input Power Displacement L/s
Strokes/Min KW
HP
160 636 853 41.51 36.77 32.32 28.15 24.27 20.68 17.38 14.36
*150 *588 800 38.92 34.47 30.30 26.39 22.76 19.39 16.29 13.47
140 549 747 36.32 32.17 28.28 24.63 21.24 18.10 15.21 12.57
130 510 693 33.73 29.88 26.26 22.87 19.72 16.81 14.12 11.67
120 470 640 31.13 27.58 24.24 21.11 18.21 15.51 13.03 10.77
110 431 587 28.54 25.28 22.22 19.35 16.69 14.22 11.95 9.87
1 3.92 5.33 0.259 0.230 0.202 0.176 0.151 0.129 0.108 0.090

Taking mechanical efficiency η=90%, coefficient of admission α=100% and volume efficiency 100%;

Input power at recommended number of strokes and continuous operation





Drawing:



RS F800 Drilling Oil Rig Mud Pump 5000psi 800 Horse Power 0
