F500 Oilfield Mud Pump For Drilling Rigs API 7K Easy To Maintenance

1
MOQ
10000USD~50000USD
Price
F500 Oilfield Mud Pump For Drilling Rigs API 7K Easy To Maintenance
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Mud Pumps For Drilling Rigs
Rated Input Power :: 373 KW
Stroke Length:: 190.5 Mm (7 1/2")
Stroke Length: 229mm(9")
Gear Ratio:: 4.286:1
Max. Working Pressure: 34.5MPa
Advantage: Easy To Maintenance
Standard: API 7K
Highlight:

F500 Oilfield Mud Pump

,

API 7K Oilfield Mud Pump

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 7K & ISO
Model Number: F500
Payment & Shipping Terms
Packaging Details: 3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 20sets/month
Product Description

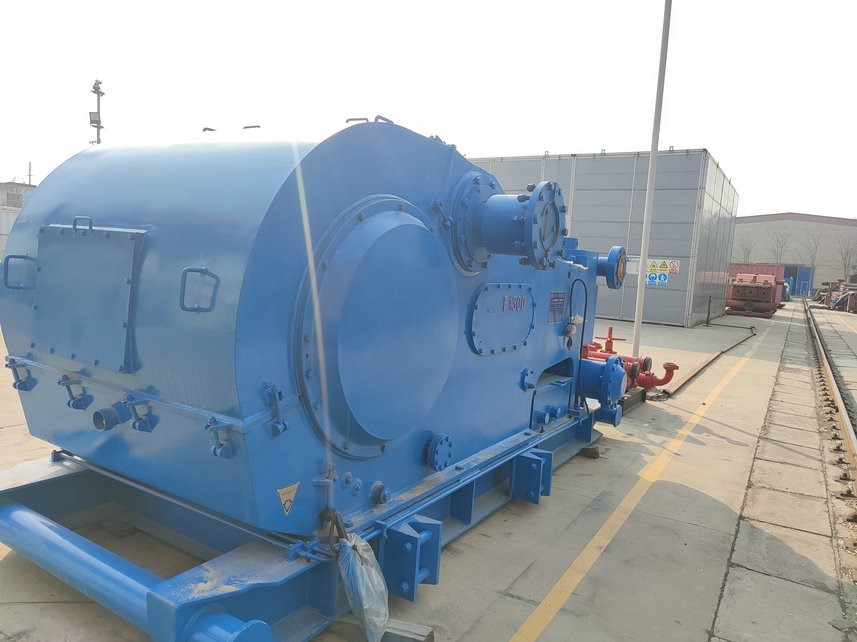

F500 Mud Pumps For Drilling Rigs API 7K Easy To Maintenance



Introduction



Our F seriesMud Pumps For Drilling Rigs which include Models of F-500, F-800, F-1000, F-1300 and F-1600 are interchangeable with Emsco Mud Pumps . The Mud Pumps For Drilling Rigs keep the features in F series including advanced structure, small size, reliability and easy to maintenance.



Parameters of F500 Mud Pumps For Drilling Rigs





Liner Size in 6 3/4
6 1/2
6 5 1/2 5 4 1/2 4
3 1/2
Discharge Pressure Mpa
9.2
10
11.7
13.9
16.8
20.8
26.3
34.5
psi
1334
1450
1670
2016
2400
3016
3814
5000
Stroke per Minute
(SPM)
Power
KW(HP)
Displacement L/s(GPM)
170
384
(515)
37.29
(591.0)
34.62
(548.7)
29.46
(466.9)
24.72
(391.8)
20.50
(324.9)
16.59
(262.9)
13.08
(207.3)
10.05
(159.2)
*165
*373
(500)
36.2
(573.7)
33.6
(532.5)
28.6
(453.3)
24
(380.4)
19.9
(315.4)
16.1
(255.)
12.7
(201.2)
9.75
(154.5)
150
339.4
(455)
32.9
(521.4)
30.55
(484.2)
26
(412.1)
21.8
(345.5)
18.1
(286.8)
14.64
(232.0)
11.55
(183.0)
8.86
(140.4)
140
316.5
(424)
30.72
(486.9)
28.51
(451.8)
24.27
(384.6)
20.36
(322.7)
16.88
(267.5)
13.66
(216.5)
10.78
(170.8)
8.27
(131.0)
130
293.9
(394)
28.52
(452.0)
26.47
(419.5)
22.53
(357.1)
18.91
(299.7)
15.68
(248.5)
12.68
(200.9)
10.01
(158.6)
8.27
(131.0)
120
271.2
(364)
26.33
(417.3)
24.44
(387.3)
20.8
(329.6)
17.45
(276.5)
14.47
(229.3)
11.71
(185.6)
9.24
(146.4)
7.09
(112.3)
110
248.7
(333)
24.1
(381.9)
22.4
(355.0)
19.07
(302.2)
16
(253.6)
13.27
(210.3)
10.73
(170.0)
8.46
(134.0)
6.5
(103.0)
1
2.261
(3.03)
0.219
(3.47)
0.204
(3.23)
0.173
(2.74)
0.145
(2.29)
0.121
(1.91)
0.098
(1.55)
0.077
(1.22)
0.059
(0.93)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.
--The * present the recommendatory SPM and input power when the mud pump runs continuously.



F500 Mud Pumps For Drilling Rigs Specification :


Rated input Power : 500 HP

Stroke Per Minute: 165 SPM
Stroke Length: 190.5 mm (7 1/2")

Gear Ratio: 4.286:1
Max. Working Pressure : 5000 psi

Valve : API#5
Max.Liner Size : 170 mm (6 3/4")
Suction Inlet Flange : 203.2 mm (8") flange
Discharge Outlet Flange : 101.6 mm (4") flange,34.5 MPa (5000 psi)
Overall Dimension (L×W×H):3639×2369×2315 mm3(11.94×7.77×7.6 ft3)Approx Weight : 9543 kg (21039 lb)
